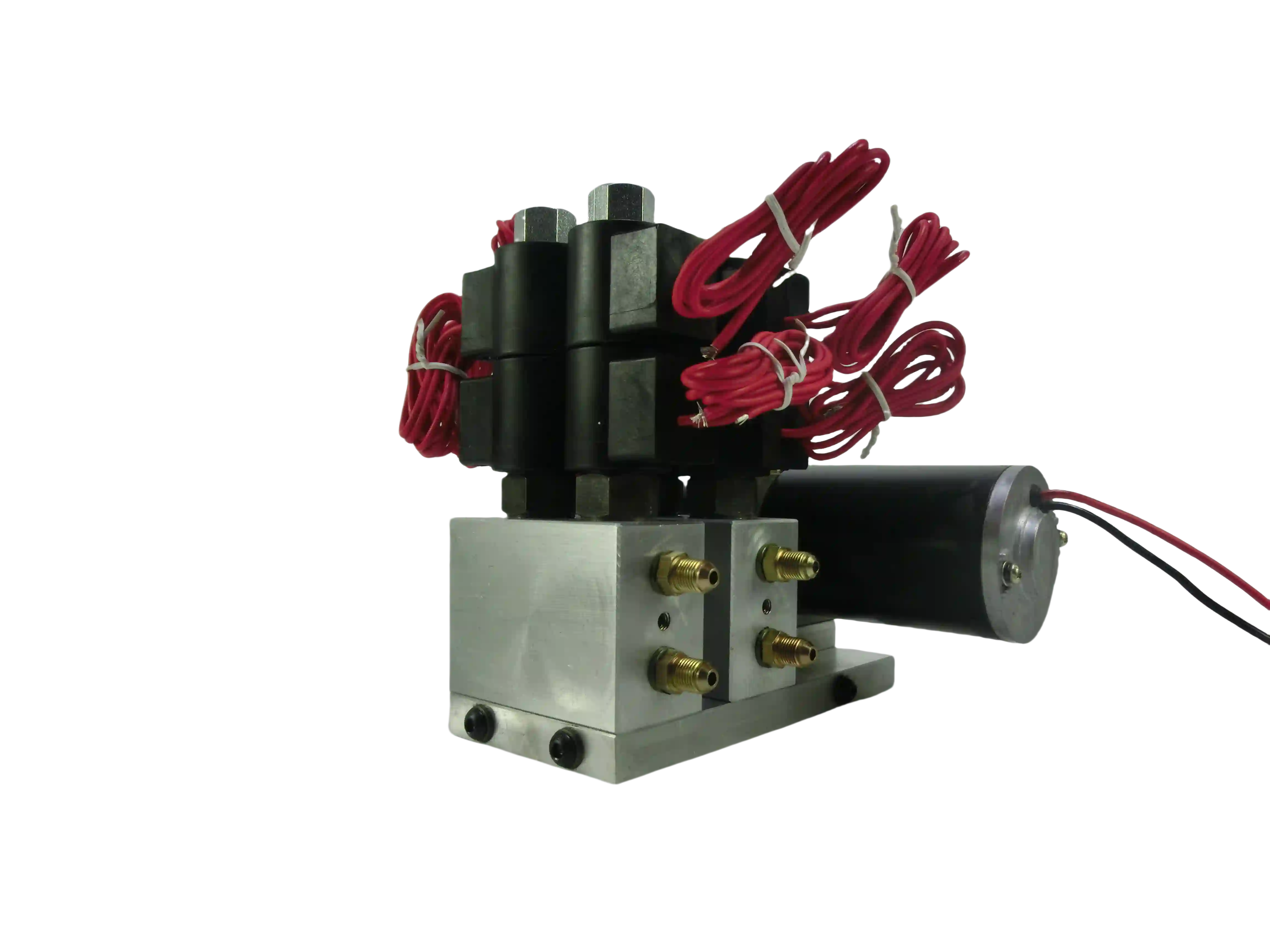

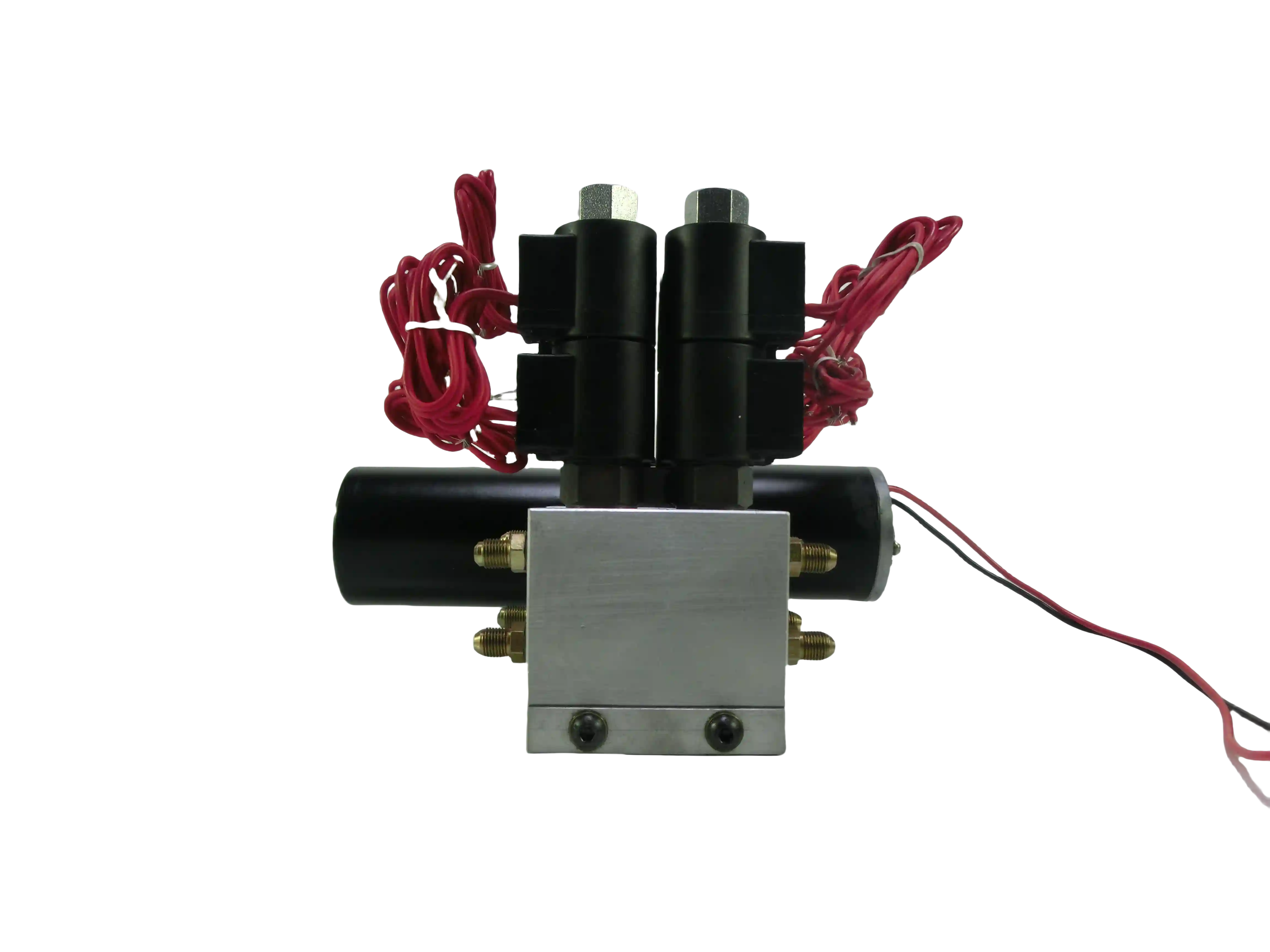

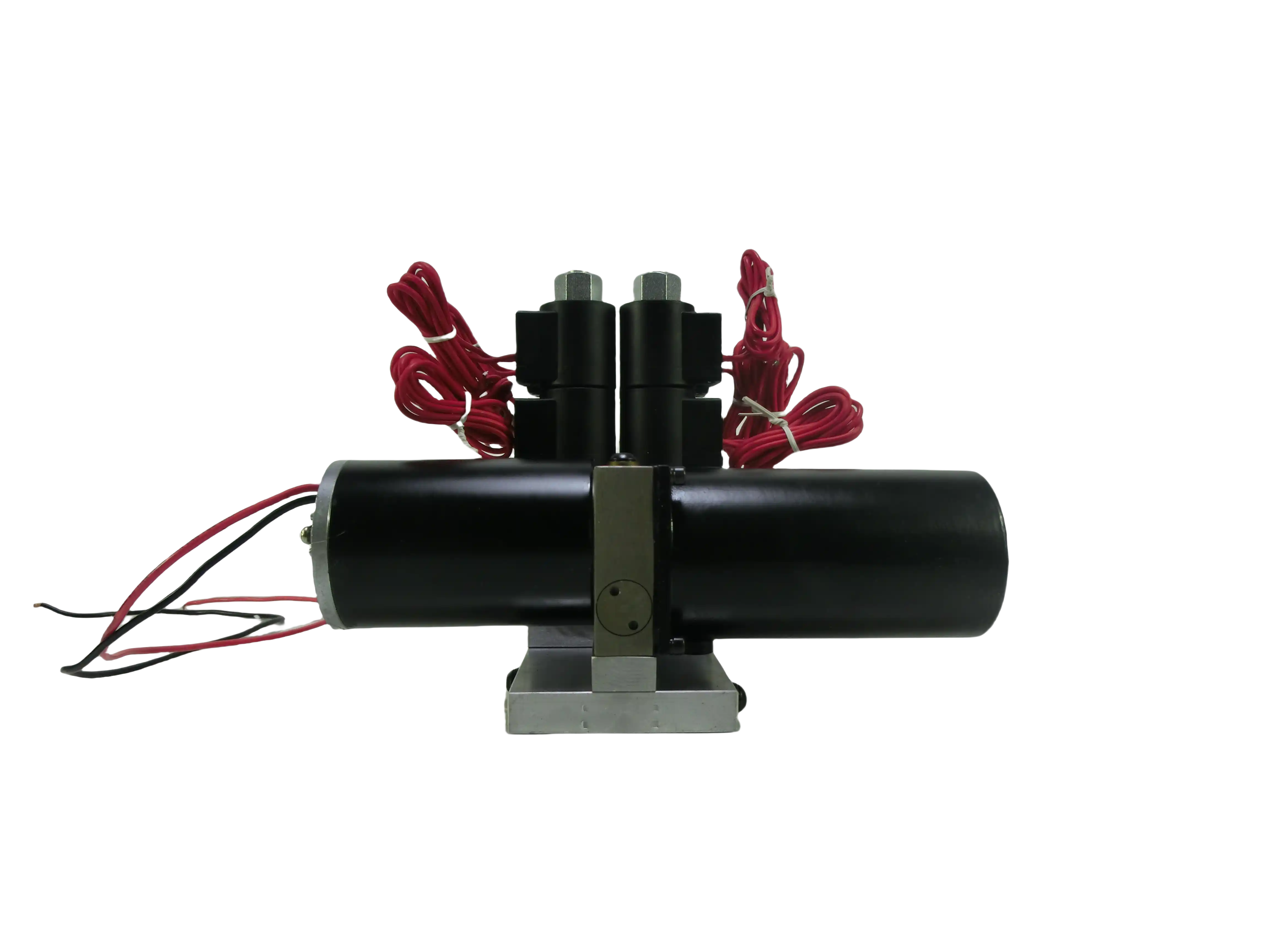

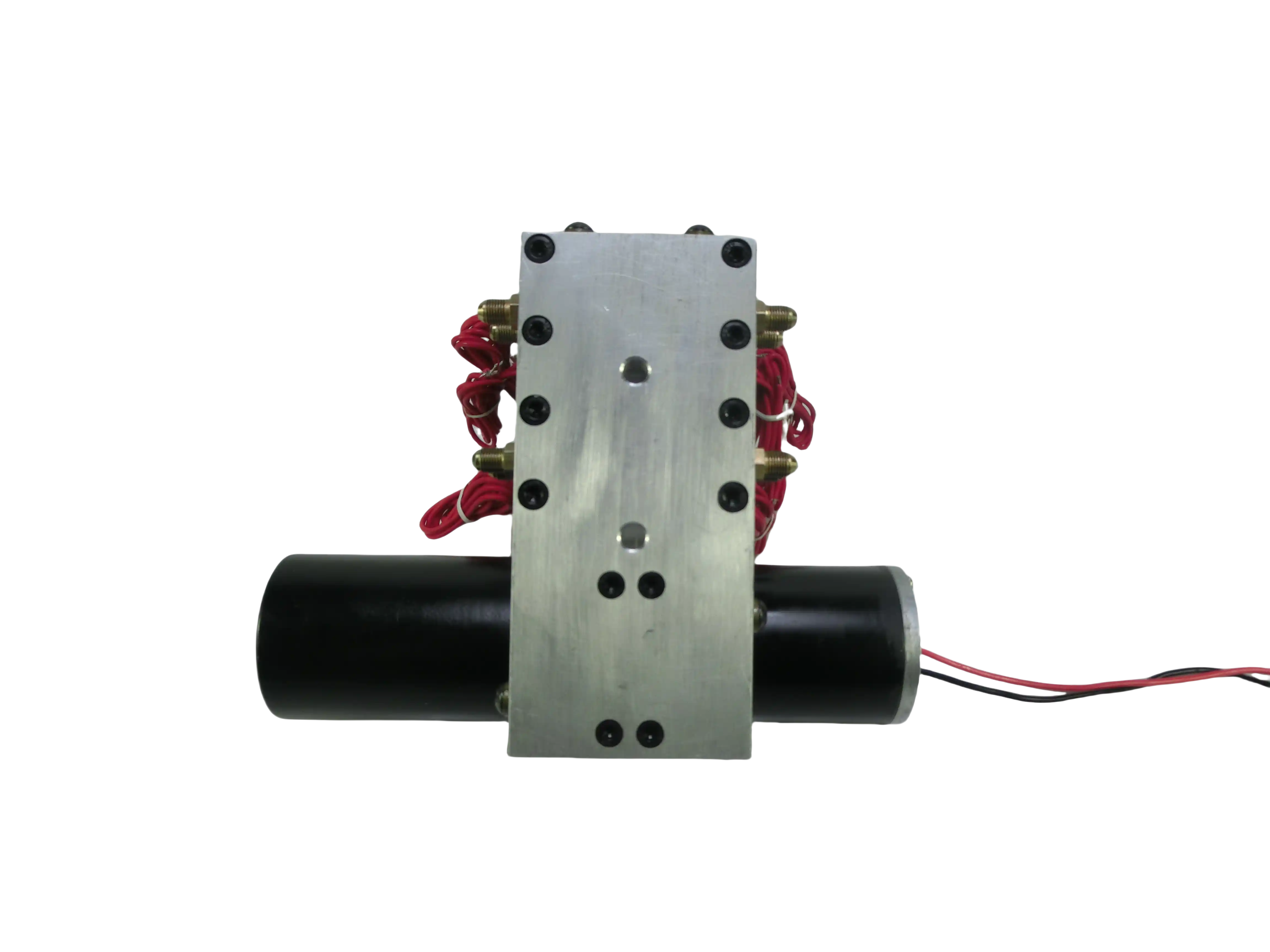

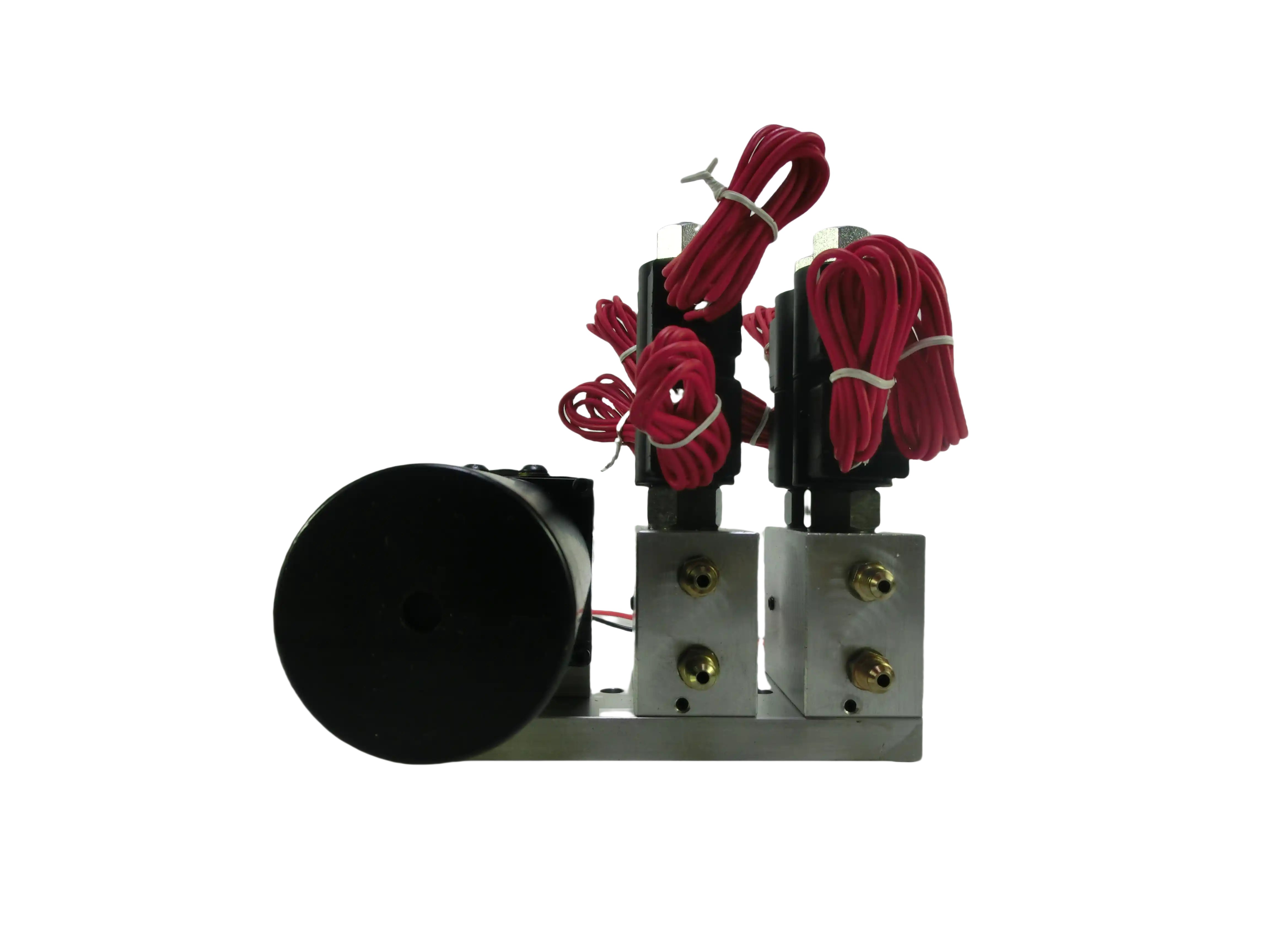

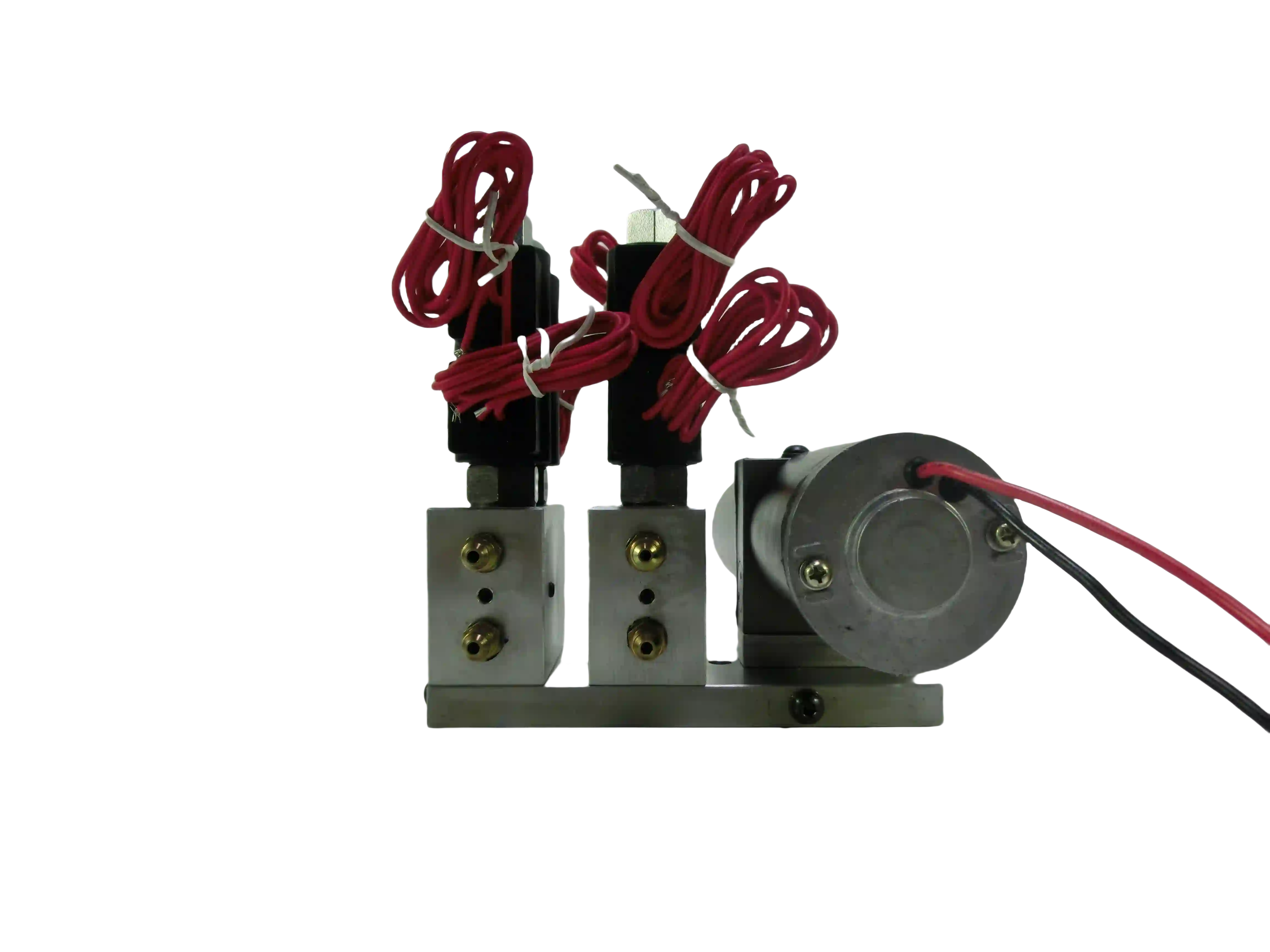

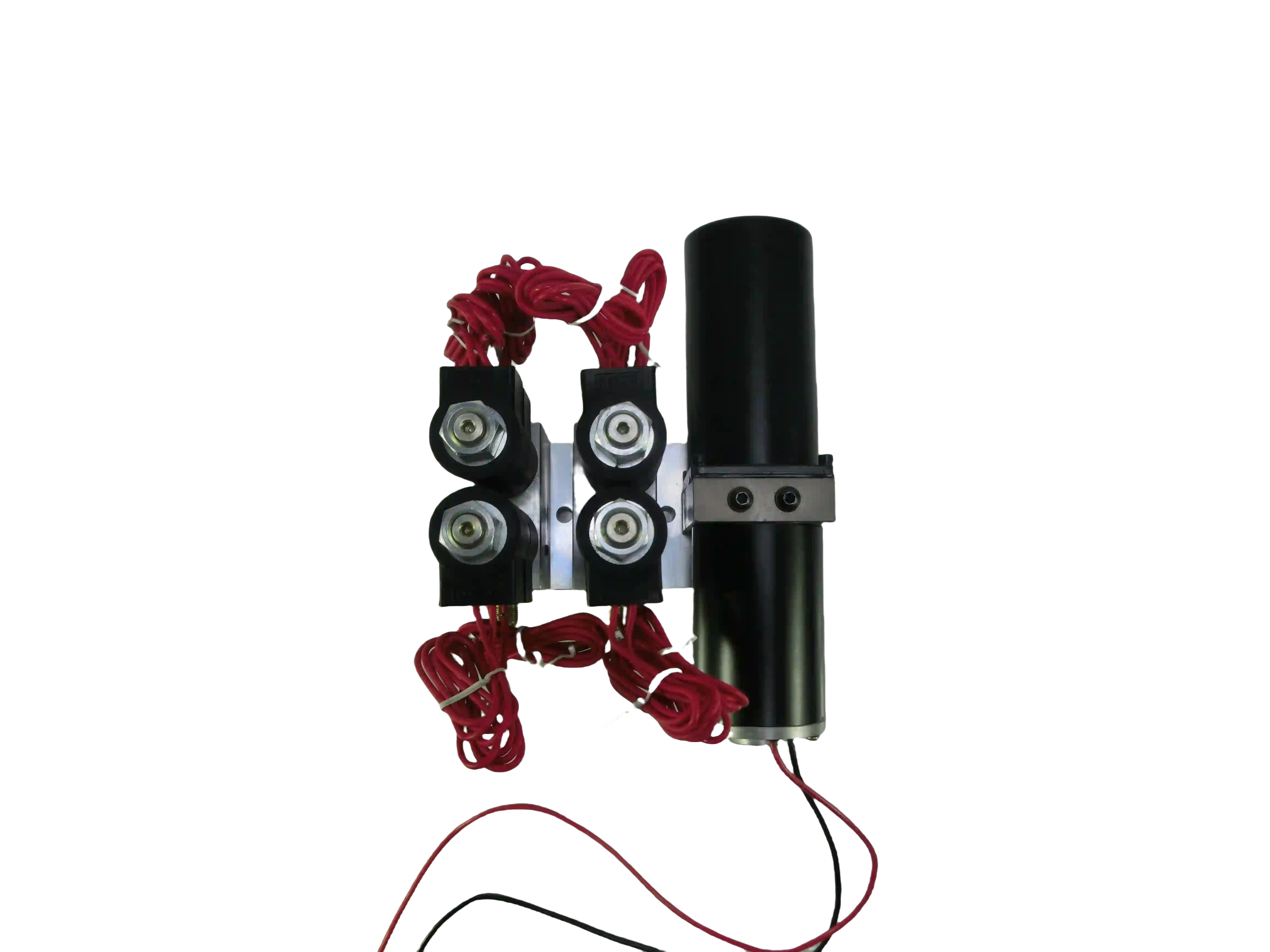

Integrated DC Hydraulic Station for Rudder Systems
Product Overview
The integrated DC hydraulic station for rudder systems is a compact and specialized hydraulic power unit designed for precise and efficient steering system control. It is widely used in yachts, micro hydraulic systems, and specialized machinery. With a focus on high performance, reliability, and compact design, this product is ideal for marine and industrial applications requiring precise hydraulic power in confined spaces.
Product Name Integrated DC Hydraulic Station for Rudder Systems / Micro Hydraulic Station / Micro Hydraulic Power Unit
Voltage DC24V
Motor Power 80W
Minimum Order Quantity 5 units / Price: 3,600 RMB per unit (50 units or more: 3,200 RMB per unit)
Applications Specialized Machinery Equipment / Specialized Hydraulic Systems
Shipping Free shipping for orders of 50 units or more
Category Attribute Machinery and Industrial Equipment → Hydraulic Systems → Complete Hydraulic Systems
Brand SIRIUS
Model 12V80W0.16
Item Number 12V80W0.16
Nominal Pressure 7 MPa
Type Hydraulic Transmission System
Material Iron, Aluminum Alloy
Motor Power 0.08 kW
Rated Pressure 6 MPa
Applicable Temperature -20°C to 60°C
Rated Flow 0.3 L/min
Applicable Range Specialized Hydraulic Systems
Oil Tank Volume 0.2 L
Customized Processing Yes
Applicable Medium Hydraulic Oil
Cross-Border Source Yes
Overseas Source No
Main Sales Regions North America, Europe, Southeast Asia, Middle East
Online Order Supported
Authorized Brands No
Measurement Unit Unit
Delivery Time 30 days
Key Features
1. Compact and Lightweight Design:
• Made with durable materials, including iron and aluminum alloy, ensuring long-lasting performance.
• Designed for small-scale hydraulic applications, fitting easily into tight installation spaces.
2. High Efficiency and Reliability:
• Equipped with a 24V DC motor delivering 80W (0.08kW) of power, ensuring smooth and consistent operation.
• Rated pressure of 6–7 MPa, suitable for demanding applications.
• Engineered for operational temperatures ranging from -20°C to 60°C.
3. Precision Hydraulic Performance:
• A compact oil tank with a capacity of 0.2L and a flow rate of 0.3 L/min ensures stable hydraulic output.
• Optimized for rudder systems requiring precise and responsive hydraulic control.
4. Customizable for Specific Needs:
• Offers tailored configurations to meet unique application requirements.
• Supports various operational environments with adaptable specifications.
Specifications
• Voltage: DC24V
• Motor Power: 80W (0.08kW)
• Rated Pressure: 6–7 MPa
• Flow Rate: 0.3 L/min
• Oil Tank Volume: 0.2L
• Material: Iron and aluminum alloy
• Operating Temperature: -20°C to 60°C
Applications
• Marine Steering Systems: Ideal for small to medium-sized vessels, especially yachts requiring precise hydraulic rudder control.
• Micro Hydraulic Systems: Suitable for various industrial and machinery applications.
• Specialized Machinery: Adaptable to custom hydraulic systems for specific tasks.
Shipping and Ordering
• Minimum Order Quantity: 5 units (Price: 3,600 RMB per unit)
• Bulk Discount: Orders of 50 units or more priced at 3,200 RMB per unit, with free shipping provided.
• Delivery Time: 30 days after order confirmation.
• Online Orders: Available with support for global shipping to North America, Europe, Southeast Asia, and the Middle East.
Brand and Model Information
• Brand: SIRIUS
• Model: 12V80W0.16
• Category: Hydraulic Transmission System
• Product Type: Machinery and Industrial Equipment → Hydraulic Systems → Complete Hydraulic Systems
Why Choose This Product?
1. Reliable Performance: Designed for consistent operation under various conditions, including harsh marine environments.
2. Global Reach: Widely available for international markets, catering to North America, Europe, and Asia.
3. Customizable Design: Flexible configurations tailored to your specific needs.
For more details or to place an order, feel free to contact us. Our team is dedicated to delivering the best hydraulic solutions for your applications!
